Raymarine Axiom Won't Power On: Dead Unit Diagnostic

The Drain Wire: Most-Missed Axiom Install Requirement

The Raymarine Axiom power cable includes a drain wire (sometimes called a shield wire — it's the bare or blue-striped conductor alongside the main power leads). This wire provides the chassis ground path for the unit's internal shielding. Raymarine's installation guide requires it be connected to the boat's DC negative bus.

In installations where the drain wire is left unconnected or terminated incorrectly, the Axiom may refuse to power on, may show intermittent operation, or may display erratic touchscreen behavior. This is a design choice by Raymarine to ensure proper EMC shielding — the unit expects that ground path to exist before it boots.

1. Identify the drain wire in the Axiom power cable — it's the thinner bare wire or may have a blue stripe.
2. Connect it directly to the boat's negative bus bar (not to the hull, not to a random chassis ground — to the DC negative bus).
3. Power on the unit.

Voltage Check at the Connector

Don't assume the battery is the problem — measure voltage at the Axiom's actual connector, not at the battery terminals. Long cable runs with undersized wire, corroded terminals, or failing switches in the circuit can all cause significant voltage drop.

1. With the unit's power switch or breaker on, measure DC voltage between the positive and negative pins of the Axiom power connector.
2. Required range: 10.8V to 32V. Below 10.8V and the unit won't start.
3. Check wire gauge: Raymarine recommends 16 AWG for runs up to 10 feet, 14 AWG beyond that.
4. Inspect the connector for corrosion — the Axiom uses a Deutsch-style connector that can corrode in the marine environment.

Fuse Check

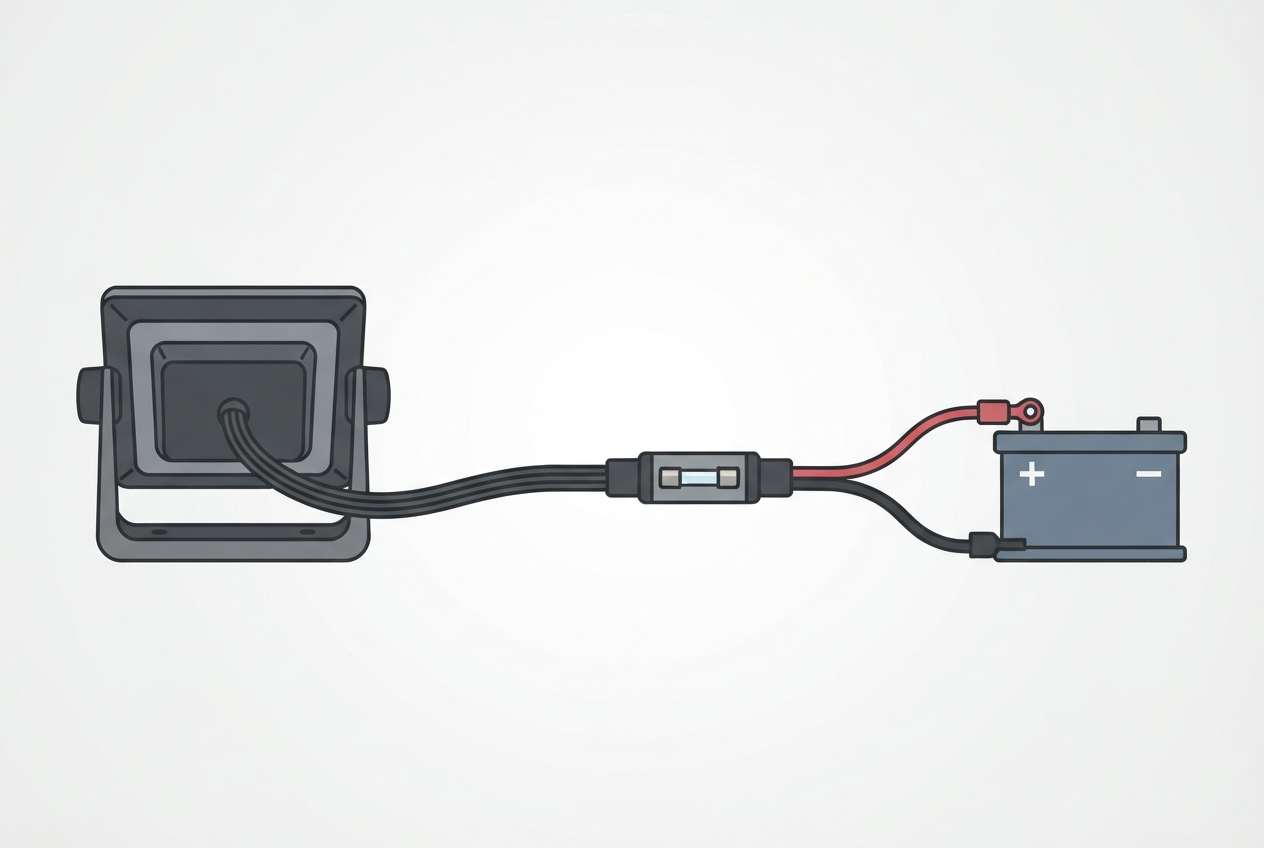

The Axiom power cable has an inline blade fuse near the battery end. Fuse ratings:

• Axiom 7: 5A
• Axiom 9: 7.5A
• Axiom 12: 7.5A
• Axiom Pro 9/12: 10A

Pull and visually inspect the fuse — a blown fuse is usually obvious, but confirm continuity with a multimeter if unsure. Replace with exactly the correct amperage rating (never go higher).

Power Brownout During Boot

If the unit shows a brief Raymarine logo then goes dark: this indicates a voltage brownout during boot. The boot sequence draws more current than idle and can pull the voltage below the minimum threshold if the supply is marginal. Common on boats with aging batteries or high-resistance connections at the battery terminals or bus bar.

1. Load-test the battery — a battery that reads 12.6V at rest but drops below 12V under load is failing.
2. Clean and re-torque all battery terminal connections.
3. If the battery is more than 3 years old in a marine environment, replacement is often the correct diagnosis.

Parts reference

Part	Typical cost	Notes
Raymarine Axiom power cable (replacement)	$25–45	OEM cable with correct connector and drain wire. Don't substitute with generic marine cable.
Inline blade fuse holder	$6–12	If original holder is corroded. Use ATC/ATO type matching the original.
Marine crimp terminals + heat shrink	$12–20/kit	For re-terminating corroded connections.
